Platform Multifunction Instruments
Centrobase 400 with segmented LC-display is developed for agricultural, contruction, forestry, stationary and similar applications.
PANORAMICA
VDO offers flexible instrument concepts embracing extensive warning, monitoring and display functions.
Flat-design precision movements have made it possible to reduce the installation depth of the instruments. Translucent backlighting supremely highlights the information presented. The modular instrumentation packaging system makes universal siting a reality.
VDO offre concept di strumenti flessibili che includono diverse funzioni di avviso, monitoraggio e visualizzazione. I movimenti di precisione dal design piatto hanno permesso di ridurre la profondità di installazione degli strumenti. La retroilluminazione traslucida mette in evidenza in modo ottimale le informazioni presentate. Il sistema di confezionamento modulare della strumentazione rende l'ubicazione universale una realtà.
Centrobase 350
The multifunctional, CAN-capable pointer instrument Centrobase 350 with segmented LC display was developed for agricultural, construction, forestry, stationary, marine and similar applications. The foundation of this high quality gauge is the established Viewline housing concept which offers ideal front IP class and comes with a modern look and feel.
The compact design allows the user to have more important information available at the same time. We also offer customer-specific individualization of the product in the following points:
- Dial design
- Illumination color
- Bezel shape and color
- Parameterization (input signals and warnings)
Benefits and Features
- Generic CAN instrumentation
- Three pointers for analog indication
- Integrated warning buzzer
- Up to 7 telltales
- Customizable appearance and functionality
Technical Data
- Fixed segment LC display (6x 14-segment digits, div. units)
- 1x CAN, up to 11x GPIO (2x freq., 1x output)
- Operating voltage 12V
- Protection class IP 67 (front)
- 110mm installation diameter

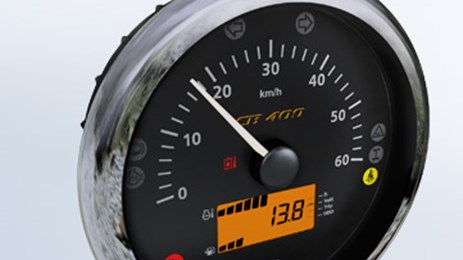

Centrobase 400
The multifunctional, CAN-capable pointer instrument Centrobase 400 with segmented LC-display is developed for agricultural, contruction, forestry, stationary and similar applications. The basis of this high quality gauge is the established Viewline housing concept which offers ideal front IP class and comes with a modern look and feel.
The compact design allows to have a greater number of important information available at the same time. Furthermore, we offer a customer specific individualization of the product in following points:
- Dial design
- Illumination colour
- Bezel shape and colour
- Display content
- Parameterization (CAN messages and warning thresholds)
Benefits and Features
- Generic CAN-Instrumentation
- Centered pointer for analogue indication
- Integrated warning buzzer
- Up to 27 telltales
- Fully customizable
Technical Data
- Fixed segment LC-display, up to 88 segments
- 2x CAN and 7x div. analogue inputs
- Up to 16 satellite instruments
- 12 V DC rated voltage
- IP 67 protection class (front)
